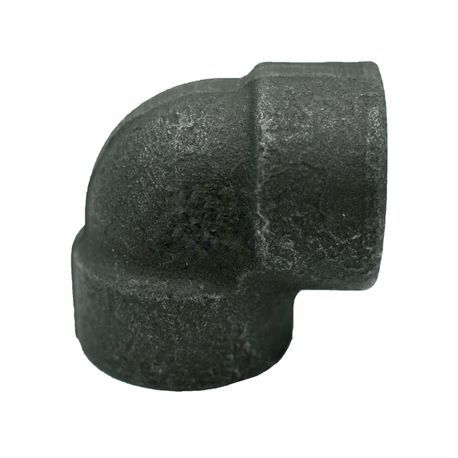

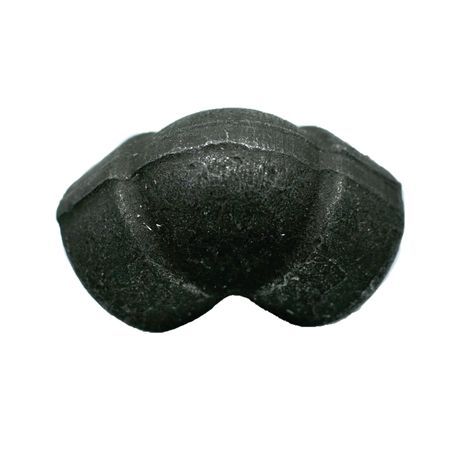

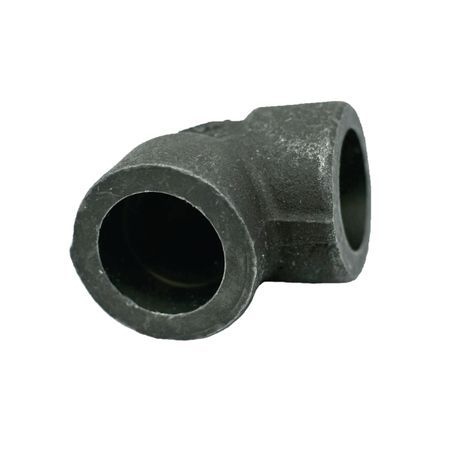

A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA105 Socket Weld 90 Degree Elbow

	Sizes	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
3000	A	0.8750	0.8750	0.9688	1.1250	1.3125	1.5000	1.7500	2.0000	2.3750	3.0000	3.3750	4.1875
	B	0.906	0.906	1.063	1.313	1.563	1.844	2.219	2.500	3.031	3.688	4.375	5.750
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D min.	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.4375	0.4375	0.5313	0.6250	0.7500	0.8750	1.0625	1.2500	1.5000	1.6250	2.2500	2.6250
6000	A	0.8750	0.9688	1.1250	1.3125	1.5000	1.7500	2.0000	2.3750	2.5000	3.2500	3.7500	4.5000
	B	0.906	1.063	1.313	1.563	1.844	2.219	2.500	2.375	3.344	4.000	4.750	6.000
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D min.	0.3750	0.3750	0.3750	0.3750	0.5000	0.5000	0.5000	0.5000	0.6250	0.6250	0.6250	0.7500
	E	0.44	0.53	0.63	0.75	0.88	1.06	1.25	1.50	1.63	2.25	2.50	2.75

A105 FORGED SOCKET WELD 90 DEGREE ELBOW

of 1

Sort By

Show

View

Item # Inside Diameter Pressure Class

P903MSWC1.5 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.9150 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

1 1/2'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.9150
Pressure Class	3M

Origin: North America
Item# P903MSWC1.5-I

Quantity	Price
Quantity	Price
1	$15.08612

$15.08612

Qty

3-5 Working Days

Product Detail

Origin: Approved
Item# P903MSWC1.5-R

Quantity	Price
Quantity	Price
1	$20.38333

$20.38333

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# P903MSWC1.5-U

Quantity	Price
Quantity	Price
1	$16.76894

$16.76894

Qty

In Stock

Product Detail

Origin: Non China/Non India
Item# P903MSWC1.5-X

Quantity	Price
Quantity	Price
1	$16.16667

$16.16667

Qty

3-5 Working Days

Product Detail

P903MSWC.375 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 0.6900 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

3/8'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	0.6900
Pressure Class	3M

Origin: Non China/Non India
Item# P903MSWC.375-X

Quantity	Price
Quantity	Price
1	$13.35

$13.35

Qty

3-5 Working Days

Product Detail

P906MSWC1.5 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.9150 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 6M Quantity Discounts Items

1 1/2'' 6M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.9150
Pressure Class	6M

Origin: North America
Item# P906MSWC1.5-U

Quantity	Price
Quantity	Price
1	$24.70798

$24.70798

Qty

In Stock

Product Detail

P903MSWC.75 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.0650 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

3/4'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.0650
Pressure Class	3M

Origin: North America
Item# P903MSWC.75-I

Quantity	Price
Quantity	Price
1	$7.84333

$7.84333

Qty

3-5 Working Days

Product Detail

Origin: Approved
Item# P903MSWC.75-R

Quantity	Price
Quantity	Price
1	$7.11667

$7.11667

Qty

In Stock

Product Detail

Origin: Non China/Non India
Item# P903MSWC.75-X

Quantity	Price
Quantity	Price
1	$5.13333

$5.13333

Qty

3-5 Working Days

Product Detail

Origin: Urestricted Origin
Item# P903MSWC.75-U

Quantity	Price
Quantity	Price
1	$6.12537

$6.12537

Qty

In Stock

Product Detail

P906MSWC2 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 2.4060 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 6M Quantity Discounts Items

2'' 6M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	2.4060
Pressure Class	6M

Origin: Non China/Non India
Item# P906MSWC2-X

Quantity	Price
Quantity	Price
1	$50.17778

$50.17778

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# P906MSWC2-I

Quantity	Price
Quantity	Price
1	$66.43333

$66.43333

Qty

3-5 Working Days

Product Detail

P903MSWC2 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 2.4060 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

2'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	2.4060
Pressure Class	3M

Origin: Urestricted Origin
Item# P903MSWC2-U

Quantity	Price
Quantity	Price
1	$22.92844

$22.92844

Qty

In Stock

Product Detail

Origin: Approved
Item# P903MSWC2-R

Quantity	Price
Quantity	Price
1	$19.5498

$19.5498

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# P903MSWC2-X

Quantity	Price
Quantity	Price
1	$32.82083

$32.82083

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# P903MSWC2-I

Quantity	Price
Quantity	Price
1	$14.86667

$14.86667

Qty

In Stock

Product Detail

P903MSWC.50 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 0.8550 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

1/2'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	0.8550
Pressure Class	3M

Origin: North America
Item# P903MSWC.50-I

Quantity	Price
Quantity	Price
1	$3.98333

$3.98333

Qty

In Stock

Product Detail

Origin: Non China/Non India
Item# P903MSWC.50-X

Quantity	Price
Quantity	Price
1	$5.11667

$5.11667

Qty

In Stock

Product Detail

Origin: Approved
Item# P903MSWC.50-R

Quantity	Price
Quantity	Price
1	$4.56667

$4.56667

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# P903MSWC.50-U

Quantity	Price
Quantity	Price
1	$5.39867

$5.39867

Qty

In Stock

Product Detail

P906MSWC.75 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.0650 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 6M Quantity Discounts Items

3/4'' 6M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.0650
Pressure Class	6M

Origin: Non China/Non India
Item# P906MSWC.75-X

Quantity	Price
Quantity	Price
1	$14.37407

$14.37407

Qty

3-5 Working Days

Product Detail

Origin: Urestricted Origin
Item# P906MSWC.75-U

Quantity	Price
Quantity	Price
1	$9.29808

$9.29808

Qty

In Stock

Product Detail

P906MSWC.50 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 0.8550 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 6M Quantity Discounts Items

1/2'' 6M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	0.8550
Pressure Class	6M

Origin: Approved
Item# P906MSWC.50-U

Quantity	Price
Quantity	Price
1	$7.27206

$7.27206

Qty

In Stock

Product Detail

Origin: North America
Item# P906MSWC.50-I

Quantity	Price
Quantity	Price
1	$6.51818

$6.51818

Qty

3-5 Working Days

Product Detail

P906MSWC1 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.3300 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 6M Quantity Discounts Items

1'' 6M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.3300
Pressure Class	6M

Origin: Non China/Non India
Item# P906MSWC1-U

Quantity	Price
Quantity	Price
1	$12.78846

$12.78846

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# P906MSWC1-R

Quantity	Price
Quantity	Price
1	$8.5

$8.5

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# P906MSWC1-X

Origin: Approved
Item# P906MSWC1-I

Quantity	Price
Quantity	Price
1	$14.28333

$14.28333

Qty

3-5 Working Days

Product Detail

P903MSWC.25 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 0.5550 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

1/4'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	0.5550
Pressure Class	3M

Origin: Urestricted Origin
Item# P903MSWC.25-I

Quantity	Price
Quantity	Price
1	$8

Qty

3-5 Working Days

Product Detail

P906MSWC3 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 3.5350 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 6M Quantity Discounts Items

3'' 6M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	3.5350
Pressure Class	6M

Origin: Non China/Non India
Item# P906MSWC3-R

Quantity	Price
Quantity	Price
1	$12.77292

$12.77292

Qty

3-5 Working Days

Product Detail

P903MSWC1 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.3300 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

1'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.3300
Pressure Class	3M

Origin: North America
Item# P903MSWC1-I

Quantity	Price
Quantity	Price
1	$5.96442

$5.96442

Qty

3-5 Working Days

Product Detail

Origin: Urestricted Origin
Item# P903MSWC1-U

Quantity	Price
Quantity	Price
1	$7.54977

$7.54977

Qty

In Stock

Product Detail

Origin: Approved
Item# P903MSWC1-R

Quantity	Price
Quantity	Price
1	$7.40417

$7.40417

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# P903MSWC1-X

Quantity	Price
Quantity	Price
1	$9.35

$9.35

Qty

In Stock

Product Detail

P903MSWC1.25 A105 FORGED SOCKET WELD 90 DEGREE ELBOW Inside Diameter 1.6750 Quantity Discounts A105 FORGED SOCKET WELD 90 DEGREE ELBOW Pressure Class 3M Quantity Discounts Items

1 1/4'' 3M A105 FORGED SOCKET WELD 90 DEGREE ELBOW

Inside Diameter	1.6750
Pressure Class	3M

Origin: Approved
Item# P903MSWC1.25-R

Origin: Urestricted Origin
Item# P903MSWC1.25-U

Quantity	Price
Quantity	Price
1	$13.86538

$13.86538

Qty

In Stock

Product Detail

Origin: Non China/Non India
Item# P903MSWC1.25-X

Origin: North America
Item# P903MSWC1.25-I

Quantity	Price
Quantity	Price
1	$11.71667

$11.71667

Qty

3-5 Working Days

Product Detail

Per ASTM A105-A105M - 24
Grade A105	Tensile Strength	Yield Strength	Elongation in 4D	Reduction in Area	Hardness
Grade A105	Min ksi [MPa]	Min ksi [Mpa]	Min %	Min %	Max
	70 [485]	36 [250]	22	30	197

Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

Composition, %	0.35 max	0.60-1.05	0.035 max	0.040 max	0.10-0.35	0.40 max (1)	0.40 max (1)	0.30 max (1-2)	0.12 max (1-2)	0.08 max
