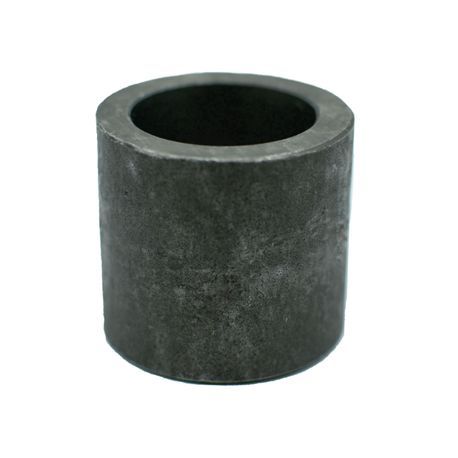

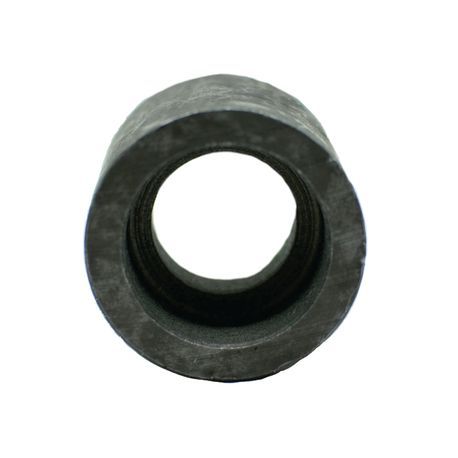

A105 FORGED SOCKET WELD COUPLING

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA105 Socket Coupling

	Sizes	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
3000	AA	1.031	1.031	1.031	1.188	1.406	1.516	1.516	1.516	2.016	2.016	2.016	2.266
	B	0.750	0.875	1.063	1.250	1.500	1.813	2.250	2.500	3.000	3.625	4.313	5.500
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D Min.	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.250	0.250	0.250	0.375	0.375	0.500	0.500	0.500	0.750	0.750	0.750	0.750
6000	AA	1.0625	1.1250	1.1250	1.1563	1.4063	1.5156	1.5156	1.5156	2.0156	2.0156	2.0156	2.2656
	B	0.875	1.063	1.313	1.500	1.750	2.250	2.500	3.000	3.625	4.250	5.000	6.250
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D Min.	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.250	0.250	0.250	0.375	0.375	0.500	0.500	0.500	0.750	0.750	0.750	0.750
9000	AA				1.3750	1.5000	1.7500	1.7969	2.0000	2.5000
	B				1.813	2.000	2.375	2.750	3.063	3.625
	C				0.855	1.065	1.330	1.675	1.915	2.406
	D Min.				0.375	0.500	0.500	0.500	0.500	0.625
	E				0.375	0.500	0.500	0.500	0.500	0.750

Note: Dimensions are in inches.

A105 FORGED SOCKET WELD COUPLING

of 1

Sort By

View

Pipe Diameter Item # Availability Price Quantity UOM

3/4

PCP3MSWC.75-I

In Stock

$2.75417/EA

See Quantity Discounts

3/4'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$2.75417/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$2.75417/EA

PCP3MSWC2-I

In Stock

$13.28333/EA

See Quantity Discounts

2'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$13.28333/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$13.28333/EA

PCP6MSWC1-I

3-5 Working Days

$7.75/EA

See Quantity Discounts

1'' 6M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$7.75/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$7.75/EA

PCP3MSWC1-I

In Stock

$3.66667/EA

See Quantity Discounts

1'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$3.66667/EA

Qty

In Stock

Product Detail

Quantity	Price
Quantity	Price
1	$3.66667/EA

1 1/4

PCP3MSWC1.25-I

3-5 Working Days

$6.5125/EA

See Quantity Discounts

1 1/4'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$6.5125/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$6.5125/EA

1/2

PCP6MSWC.50-I

3-5 Working Days

$3.81833/EA

See Quantity Discounts

1/2'' 6M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$3.81833/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$3.81833/EA

1 1/2

PCP3MSWC1.5-I

3-5 Working Days

$9/EA

See Quantity Discounts

1 1/2'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$9/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$9/EA

1/2

PCP3MSWC.50-I

3-5 Working Days

$2.31667/EA

See Quantity Discounts

1/2'' 3M A105 FORGED SOCKET WELD COUPLING URESTRICTED ORIGIN

$2.31667/EA

Qty

3-5 Working Days

Product Detail

Quantity	Price
Quantity	Price
1	$2.31667/EA

ASTM A105	Covers forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. Included are flanges, fittings, Valves, and similar parts ordered either to dimensions specified by the purchaser or to dimensional standards.
ASME B16.11	Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.

Grade A105	Tensile Strength	Yield Strength	Elongation in 4D	Reduction in Area	Hardness
Grade A105	Min ksi [MPa]	Min ksi [Mpa]	Min %	Min %	Max
	70 [485]	36 [250]	22	30	197

Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

Composition, %	0.35 max	0.60-1.05	0.035 max	0.040 max	0.10-0.35	0.40 max (1)	0.40 max (1)	0.30 max (1-2)	0.12 max (1-2)	0.08 max
