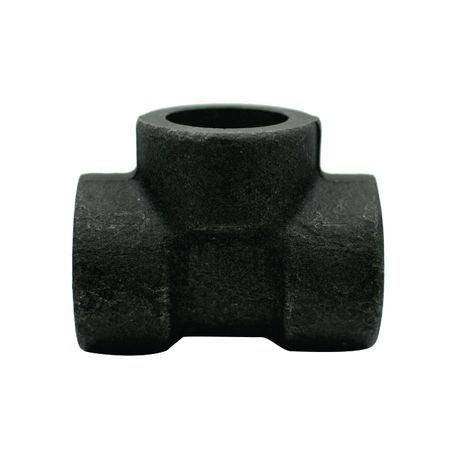

A105 FORGED SOCKET WELD TEE

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA105 Socket Weld Tee

	Sizes	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
3000	A	0.8750	0.8750	0.9688	1.1250	1.3125	1.5000	1.7500	2.0000	2.3750	3.0000	3.3750	4.1875
	B	0.90625	0.90625	1.06250	1.31250	1.56250	1.84375	2.21875	2.50000	3.03125	3.68750	4.37500	5.75000
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.4375	0.4375	0.5313	0.6250	0.7500	0.8750	1.0625	1.2500	1.5000	1.6250	2.2500	2.6250
6000	A	0.8750	0.9688	1.1250	1.3125	1.5000	1.7500	2.0000	2.3750	2.5000	3.2500	3.7500	4.5000
	B	0.90625	1.06250	1.31250	1.56250	1.84375	2.21875	2.50000	3.03125	3.34375	4.00000	4.75000	6.00000
	C	0.420	0.555	0.690	0.855	1.065	1.330	1.675	1.915	2.406	2.906	3.535	4.545
	D	0.375	0.375	0.375	0.375	0.500	0.500	0.500	0.500	0.625	0.625	0.625	0.750
	E	0.43750	0.53125	0.62500	0.75000	0.87500	1.06250	1.25000	1.50000	1.62500	2.25000	2.50000	2.75000

A105 FORGED SOCKET WELD TEE

of 1

Sort By

Show

View

Item # Pipe Diameter

PTE3MSWC1.5 A105 FORGED SOCKET WELD TEE Pipe Diameter 1 1/2 Quantity Discounts Items

1 1/2'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1 1/2

Origin: Non China/Non India
Item# PTE3MSWC1.5-R

Quantity	Price
Quantity	Price
1	$12.33333

$12.33333

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# PTE3MSWC1.5-I

Quantity	Price
Quantity	Price
1	$14.2

$14.2

Qty

3-5 Working Days

Product Detail

Origin: Approved
Item# PTE3MSWC1.5-X

Quantity	Price
Quantity	Price
1	$18.77333

$18.77333

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# PTE3MSWC1.5-U

Quantity	Price
Quantity	Price
1	$21.20385

$21.20385

Qty

In Stock

Product Detail

PTE6MSWC.75 A105 FORGED SOCKET WELD TEE Pipe Diameter 3/4 Quantity Discounts Items

3/4'' 6M A105 FORGED SOCKET WELD TEE

Pipe Diameter	3/4

Origin: Approved
Item# PTE6MSWC.75-X

Quantity	Price
Quantity	Price
1	$50.775

$50.775

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# PTE6MSWC.75-R

Quantity	Price
Quantity	Price
1	$14.14167

$14.14167

Qty

3-5 Working Days

Product Detail

Origin: Urestricted Origin
Item# PTE6MSWC.75-I

Quantity	Price
Quantity	Price
1	$25.5125

$25.5125

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# PTE6MSWC.75-U

Quantity	Price
Quantity	Price
1	$14.54875

$14.54875

Qty

In Stock

Product Detail

PTE6MSWC.25 A105 FORGED SOCKET WELD TEE Pipe Diameter 1/4 Quantity Discounts Items

1/4'' 6M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1/4

Origin: North America
Item# PTE6MSWC.25-U

Quantity	Price
Quantity	Price
1	$10.97917

$10.97917

Qty

3-5 Working Days

Product Detail

PTE3MSWC.75 A105 FORGED SOCKET WELD TEE Pipe Diameter 3/4 Quantity Discounts Items

3/4'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	3/4

Origin: Approved
Item# PTE3MSWC.75-X

Quantity	Price
Quantity	Price
1	$10.85417

$10.85417

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# PTE3MSWC.75-U

Quantity	Price
Quantity	Price
1	$8.17733

$8.17733

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# PTE3MSWC.75-I

Quantity	Price
Quantity	Price
1	$6.1

$6.1

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# PTE3MSWC.75-R

Quantity	Price
Quantity	Price
1	$6.6

$6.6

Qty

In Stock

Product Detail

PTE6MSWC.50 A105 FORGED SOCKET WELD TEE Pipe Diameter 1/2 Quantity Discounts Items

1/2'' 6M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1/2

Origin: North America
Item# PTE6MSWC.50-U

Quantity	Price
Quantity	Price
1	$10.97973

$10.97973

Qty

In Stock

Product Detail

PTE3MSWC2.5 A105 FORGED SOCKET WELD TEE Pipe Diameter 2 1/2 Quantity Discounts Items

2 1/2'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	2 1/2

Origin: Urestricted Origin
Item# PTE3MSWC2.5-I

Quantity	Price
Quantity	Price
1	$86.85

$86.85

Qty

3-5 Working Days

Product Detail

PTE3MSWC1.25 A105 FORGED SOCKET WELD TEE Pipe Diameter 1 1/4 Quantity Discounts Items

1 1/4'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1 1/4

Origin: Urestricted Origin
Item# PTE3MSWC1.25-I

Quantity	Price
Quantity	Price
1	$45.2

$45.2

Qty

3-5 Working Days

Product Detail

Origin: Approved
Item# PTE3MSWC1.25-X

Quantity	Price
Quantity	Price
1	$21.6

$21.6

Qty

3-5 Working Days

Product Detail

PTE6MSWC1 A105 FORGED SOCKET WELD TEE Pipe Diameter 1 Quantity Discounts Items

1'' 6M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1

Origin: Urestricted Origin
Item# PTE6MSWC1-I

Quantity	Price
Quantity	Price
1	$23.61945

$23.61945

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# PTE6MSWC1-U

Quantity	Price
Quantity	Price
1	$18.1899

$18.1899

Qty

In Stock

Product Detail

Origin: Non China/Non India
Item# PTE6MSWC1-R

Quantity	Price
Quantity	Price
1	$18.18333

$18.18333

Qty

3-5 Working Days

Product Detail

Origin: Approved
Item# PTE6MSWC1-X

Quantity	Price
Quantity	Price
1	$30.8

$30.8

Qty

3-5 Working Days

Product Detail

PTE6MSWC1.5 A105 FORGED SOCKET WELD TEE Pipe Diameter 1 1/2 Quantity Discounts Items

1 1/2'' 6M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1 1/2

Origin: North America
Item# PTE6MSWC1.5-U

Quantity	Price
Quantity	Price
1	$73.36538

$73.36538

Qty

3-5 Working Days

Product Detail

PTE6MSWC2 A105 FORGED SOCKET WELD TEE Pipe Diameter 2 Quantity Discounts Items

2'' 6M A105 FORGED SOCKET WELD TEE

Pipe Diameter	2

Origin: Approved
Item# PTE6MSWC2-X

Quantity	Price
Quantity	Price
1	$75.48333

$75.48333

Qty

In Stock

Product Detail

PTE3MSWC1 A105 FORGED SOCKET WELD TEE Pipe Diameter 1 Quantity Discounts Items

1'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1

Origin: North America
Item# PTE3MSWC1-U

Quantity	Price
Quantity	Price
1	$10.33623

$10.33623

Qty

In Stock

Product Detail

Origin: Urestricted Origin
Item# PTE3MSWC1-I

Quantity	Price
Quantity	Price
1	$7.95555

$7.95555

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# PTE3MSWC1-R

Quantity	Price
Quantity	Price
1	$8.98333

$8.98333

Qty

3-5 Working Days

Product Detail

Origin: Approved
Item# PTE3MSWC1-X

Quantity	Price
Quantity	Price
1	$11.76667

$11.76667

Qty

3-5 Working Days

Product Detail

PTE3MSWC.375 A105 FORGED SOCKET WELD TEE Pipe Diameter 3/8 Quantity Discounts Items

3/8'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	3/8

Origin: Non China/Non India
Item# PTE3MSWC.375-R

Origin: North America
Item# PTE3MSWC.375-U

Origin: Urestricted Origin
Item# PTE3MSWC.375-I

Quantity	Price
Quantity	Price
1	$0.01667

$0.01667

Qty

In Stock

Product Detail

Origin: Approved
Item# PTE3MSWC.375-X

PTE3MSWC2 A105 FORGED SOCKET WELD TEE Pipe Diameter 2 Quantity Discounts Items

2'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	2

Origin: Urestricted Origin
Item# PTE3MSWC2-I

Quantity	Price
Quantity	Price
1	$24.4

$24.4

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# PTE3MSWC2-U

Quantity	Price
Quantity	Price
1	$31.59288

$31.59288

Qty

In Stock

Product Detail

Origin: Approved
Item# PTE3MSWC2-X

Quantity	Price
Quantity	Price
1	$23.5

$23.5

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# PTE3MSWC2-R

Quantity	Price
Quantity	Price
1	$19.54167

$19.54167

Qty

3-5 Working Days

Product Detail

PTE3MSWC.50 A105 FORGED SOCKET WELD TEE Pipe Diameter 1/2 Quantity Discounts Items

1/2'' 3M A105 FORGED SOCKET WELD TEE

Pipe Diameter	1/2

Origin: Urestricted Origin
Item# PTE3MSWC.50-I

Quantity	Price
Quantity	Price
1	$5.38333

$5.38333

Qty

3-5 Working Days

Product Detail

Origin: North America
Item# PTE3MSWC.50-U

Quantity	Price
Quantity	Price
1	$6.66627

$6.66627

Qty

In Stock

Product Detail

Origin: Approved
Item# PTE3MSWC.50-X

Origin: Non China/Non India
Item# PTE3MSWC.50-R

Quantity	Price
Quantity	Price
1	$3.66667

$3.66667

Qty

3-5 Working Days

Product Detail

ASTM A105	Covers forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. Included are flanges, fittings, Valves, and similar parts ordered either to dimensions specified by the purchaser or to dimensional standards.
ASME B16.11	Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.

Per ASTM A105-A105M - 24
Grade A105	Tensile Strength	Yield Strength	Elongation in 4D	Reduction in Area	Hardness
Grade A105	Min ksi [MPa]	Min ksi [Mpa]	Min %	Min %	Max
	70 [485]	36 [250]	22	30	197

Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

Composition, %	0.35 max	0.60-1.05	0.035 max	0.040 max	0.10-0.35	0.40 max (1)	0.40 max (1)	0.30 max (1-2)	0.12 max (1-2)	0.08 max
