A105 Socket Weld Reducing Insert
Choose Favorites List
Zoom In
Zoom Out
Reset
Enlarge
A105 Socket Weld Reducing Insert
A105 Socket Weld Reducing Insert
Sorry, this item is currently out of stock.
Enter your email address below to receive notification when it becomes available.
Qty
Add To Cart
+ Add To Favorites
Technical Data
Products
Governing Standards
Chemical Properties
Mechanical Properties
Dimensional Specifications
Governing Standards
Governing Standards
A105 Socket Weld Reducing Insert
ASTM A105
Covers forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. Included are flanges, fittings, Valves, and similar parts ordered either to dimensions specified by the purchaser or to dimensional standards.
ASME B16.11
Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.
Chemical Properties
Chemical
A105 Socket Weld Reducing Insert
Element
Carbon
Manganese
Phosphorus
Sulfur
Silicon
Copper
Nickel
Chromium
Molybdenum
Vanadium
Composition, %
0.35 max
0.60-1.05
0.035 max
0.040 max
0.10-0.35
0.40 max (1)
0.40 max (1)
0.30 max (1-2)
0.12 max (1-2)
0.08 max
1. The sum of copper, nickel, chromium, molybdenum and vanadium shall not exceed 1.00%
2. The sum of chromium and molybdenum shall not exceed 0.32%
Mechanical Properties
Mechanical Properties
A105 Socket Weld Reducing Insert
Grade A105
Tensile Strength
Yield Strength
Elongation in 4D
Reduction in Area
Hardness
Min ksi [MPa]
Min ksi [Mpa]
Min %
Min %
Max
70 [485]
36 [250]
22
30
197

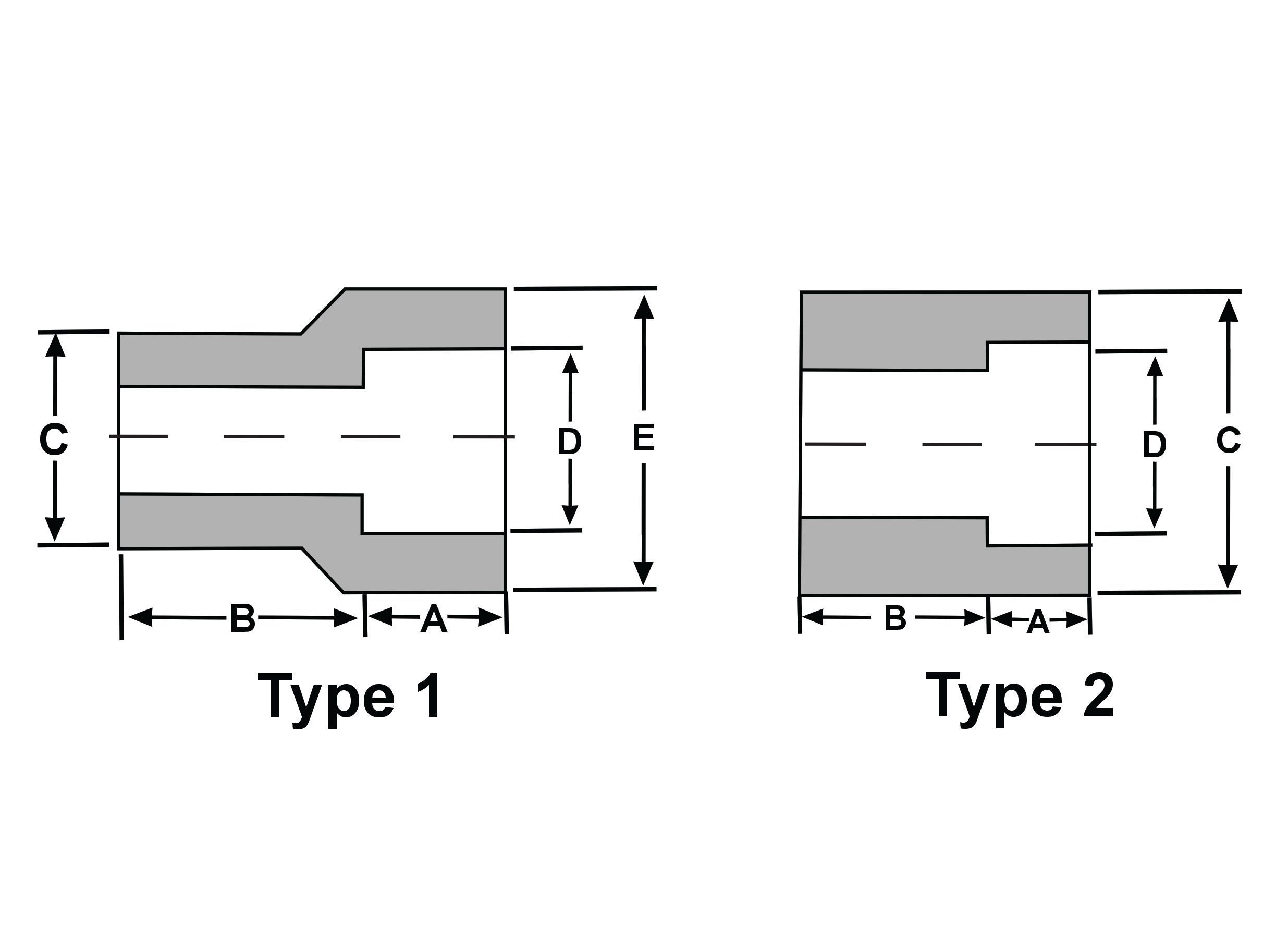

Dimensional Specifications
Dimensional Specifications
A105 Socket Weld Reducing Insert
3000 #
6000 #
Size
C
D
Fig.
A (Min.)
B
E
Fig.
A (Min.)
B
E
3/8 x 1/4
0.685
0.555
1
3/8
3/4
15/16
1
3/8
27/32
1
1/2 x 3/8
0.850
0.690
1
3/8
13/16
1 1/16
1
3/8
29/32
1 3/16
1/2 x 1/4
0.850
0.555
1
3/8
13/16
15/16
1
3/8
13/16
1
3/4 x 1/2
1.060
0.855
1
3/8
7/8
1 5/16
1
3/8
1
1 3/8
3/4 x 3/8
1.060
0.690
2
3/8
5/8
1
3/8
7/8
1 3/16
3/4 x 1/4
1.060
0.555
2
3/8
11/16
2
3/8
7/8
1 x 3/4
1.325
1.065
1
1/2
15/16
1 17/32
1
1/2
1 1/8
1 11/16
1 x 1/2
1.325
0.855
2
3/8
5/8
1
3/8
1 1/8
1 3/8
1 x 3/8
1.325
0.690
2
3/8
11/16
2
3/8
7/8
1 x 1/4
1.325
0.555
2
3/8
3/4
2
3/8
15/16
1 1/4 x 1
1.670
1.330
1
1/2
1
1 7/8
1
1/2
1 3/16
2
1 1/4 x 3/4
1.670
1.065
2
1/2
11/16
2
1/2
13/16
1 1/4 x 1/2
1.670
0.855
2
3/8
3/4
2
3/8
7/8
1 1/4 x 3/8
1.670
0.690
2
3/8
13/16
2
3/8
15/16
1 1/4 x 1/4
1.670
0.555
2
3/8
7/8
2
3/8
1
1 1/2 x 1 1/4
1.910
1.675
1
1/2
1 1/8
2 1/4
1
1/2
1 3/8
2 3/8
1 1/2 x 1
1.910
1.330
2
1/2
11/16
1
1/2
1 5/32
2 1/16
1 1/2 x 3/4
1.910
1.065
2
1/2
3/4
2
1/2
1
1 1/2 x 1/2
1.910
0.855
2
3/8
13/16
2
3/8
1 1/16
1 1/2 x 3/8
1.910
0.690
2
3/8
7/8
2
3/8
1 1/8
2 x 1 1/2
2.385
1.915
1
1/2
1 1/4
2 1/2
1
1/2
1 17/32
2 11/16
2 x 1 1/4
2.385
1.675
2
1/2
13/16
2
1/2
15/16
2 x 1
2.385
1.330
2
1/2
7/8
2
1/2
1
2 x 3/4
2.385
1.065
2
1/2
15/16
2
1/2
1 1/16
2 x 1/2
2.385
0.855
2
3/8
1
2
3/8
1 1/8
