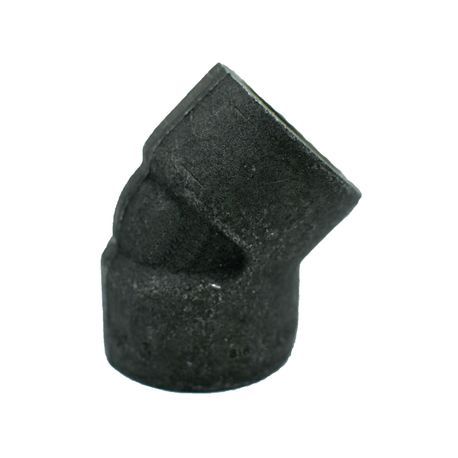

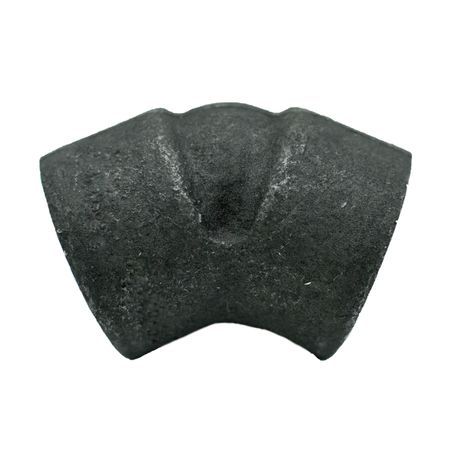

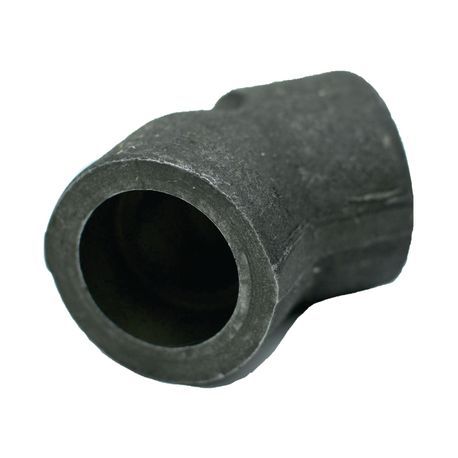

A105 Threaded 45 Degree Elbow

The A105 Threaded 45-Degree Elbow is a versatile fitting used to change the direction of piping systems at a 45-degree angle. Made from carbon steel, this elbow is corrosion and wear resistant. Its threaded design ensures easy installation and disassembly.

Products
Governing Standards
Chemical Properties
Mechanical Properties
Dimensional Specifications

of 1

Sort By

Show

View

Item # Pipe Diameter Pressure Class

P453MTHC2 A105 Threaded 45 Degree Elbow Pipe Diameter 2 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

2'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	2
Pressure Class	3M

Origin: Non China/Non India
Item# P453MTHC2-R

Origin: Approved
Item# P453MTHC2-X

Origin: North America
Item# P453MTHC2-U

Origin: Urestricted Origin
Item# P453MTHC2-I

P453MTHC.125 A105 Threaded 45 Degree Elbow Pipe Diameter 1/8 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

1/8'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	1/8
Pressure Class	3M

Origin: Urestricted Origin
Item# P453MTHC.125-I

P453MTHC.25 A105 Threaded 45 Degree Elbow Pipe Diameter 1/4 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

1/4'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	1/4
Pressure Class	3M

Origin: Non China/Non India
Item# P453MTHC.25-R

Origin: Approved
Item# P453MTHC.25-X

Origin: North America
Item# P453MTHC.25-U

Origin: Urestricted Origin
Item# P453MTHC.25-I

P453MTHC.375 A105 Threaded 45 Degree Elbow Pipe Diameter 3/8 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

3/8'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	3/8
Pressure Class	3M

Origin: Approved
Item# P453MTHC.375-X

Origin: North America
Item# P453MTHC.375-U

Origin: Urestricted Origin
Item# P453MTHC.375-I

Origin: Non China/Non India
Item# P453MTHC.375-R

P453MTHC.75 A105 Threaded 45 Degree Elbow Pipe Diameter 3/4 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

3/4'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	3/4
Pressure Class	3M

Origin: Approved
Item# P453MTHC.75-X

Origin: North America
Item# P453MTHC.75-U

Origin: Urestricted Origin
Item# P453MTHC.75-I

Origin: Non China/Non India
Item# P453MTHC.75-R

P456MTHC.75 A105 Threaded 45 Degree Elbow Pipe Diameter 3/4 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 6M Quantity Discounts Items

3/4'' 6M A105 Threaded 45 Degree Elbow

Pipe Diameter	3/4
Pressure Class	6M

Origin: North America
Item# P456MTHC.75-U

P453MTHC1.25 A105 Threaded 45 Degree Elbow Pipe Diameter 1 1/4 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

1 1/4'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	1 1/4
Pressure Class	3M

Origin: Approved
Item# P453MTHC1.25-X

Origin: Non China/Non India
Item# P453MTHC1.25-R

Origin: Urestricted Origin
Item# P453MTHC1.25-I

Origin: North America
Item# P453MTHC1.25-U

P453MTHC1 A105 Threaded 45 Degree Elbow Pipe Diameter 1 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

1'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	1
Pressure Class	3M

Origin: Urestricted Origin
Item# P453MTHC1-I

Origin: Non China/Non India
Item# P453MTHC1-R

Origin: Approved
Item# P453MTHC1-X

Origin: North America
Item# P453MTHC1-U

P453MTHC.50 A105 Threaded 45 Degree Elbow Pipe Diameter 1/2 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

1/2'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	1/2
Pressure Class	3M

Origin: North America
Item# P453MTHC.50-U

Origin: Non China/Non India
Item# P453MTHC.50-R

Origin: Urestricted Origin
Item# P453MTHC.50-I

Origin: Approved
Item# P453MTHC.50-X

P456MTHC1 A105 Threaded 45 Degree Elbow Pipe Diameter 1 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 6M Quantity Discounts Items

1'' 6M A105 Threaded 45 Degree Elbow

Pipe Diameter	1
Pressure Class	6M

Origin: North America
Item# P456MTHC1-U

P453MTHC1.5 A105 Threaded 45 Degree Elbow Pipe Diameter 1 1/2 Quantity Discounts A105 Threaded 45 Degree Elbow Pressure Class 3M Quantity Discounts Items

1 1/2'' 3M A105 Threaded 45 Degree Elbow

Pipe Diameter	1 1/2
Pressure Class	3M

ASTM A105	Covers forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. Included are flanges, fittings, Valves, and similar parts ordered either to dimensions specified by the purchaser or to dimensional standards.
ASME B16.11	Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.

Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

Composition, %	0.35 max	0.60-1.05	0.035 max	0.040 max	0.10-0.35	0.40 max (1)	0.40 max (1)	0.30 max (1-2)	0.12 max (1-2)	0.08 max

Per ASTM A105-A105M - 24
Grade A105	Tensile Strength	Yield Strength	Elongation in 4D	Reduction in Area	Hardness
Grade A105	Min ksi [MPa]	Min ksi [Mpa]	Min %	Min %	Max
	70 [485]	36 [250]	22	30	197

	Sizes	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
3000	A	0.8750	0.9688	1.1250	1.3125	1.5000	1.7500	2.0000	2.3750	2.5000	3.2500	3.7500	4.5000
3000	B	0.906	1.063	1.313	1.563	1.844	2.219	2.500	3.031	3.344	4.000	4.750	6.000
6000	A	0.9688	1.1250	1.3125	1.5000	1.7500	2.0000	2.3750	2.5000	3.2500	3.7500	4.1875	4.5000
6000	B	1.063	1.313	1.563	1.844	2.219	2.500	3.031	3.344	4.000	4.750	5.750	6.000
