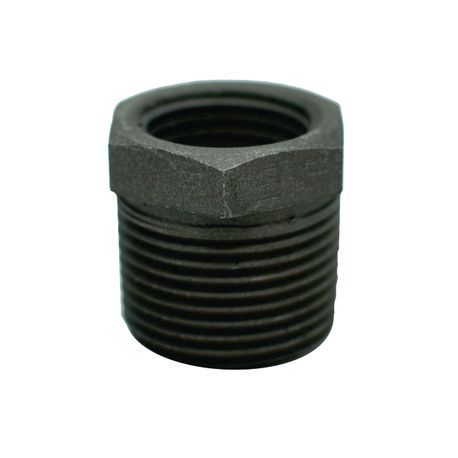

A105 THREADED HEX BUSHING

Products
Governing Standards
Mechanical Properties
Chemical Properties
Dimensional Specifications

Sort By

Item # Pressure Class Pipe Diameter

PHB36THC.75.125 A105 THREADED HEX BUSHING Pressure Class 3M, 6M Quantity Discounts A105 THREADED HEX BUSHING Pipe Diameter 3/4 Quantity Discounts Items

3/4'' X 1/8 3M/6M A105 THREADED HEX BUSHING

Pressure Class	3M, 6M
Pipe Diameter	3/4

Origin: Urestricted Origin
Item# PHB36THC.75.125-U

Quantity	Price
Quantity	Price
1	$1.73077

$1.73077

Qty

In Stock

Product Detail

PHB36THC.75.25 A105 THREADED HEX BUSHING Pressure Class 3M, 6M Quantity Discounts A105 THREADED HEX BUSHING Pipe Diameter 3/4 Quantity Discounts Items

3/4'' X 1/4 3M/6M A105 THREADED HEX BUSHING

Pressure Class	3M, 6M
Pipe Diameter	3/4

Origin: Approved
Item# PHB36THC.75.25-U

Quantity	Price
Quantity	Price
1	$2.15738

$2.15738

Qty

In Stock

Product Detail

PHB36THC.75.50 A105 THREADED HEX BUSHING Pressure Class 3M, 6M Quantity Discounts A105 THREADED HEX BUSHING Pipe Diameter 3/4 Quantity Discounts Items

3/4'' X 1/2 3M/6M A105 THREADED HEX BUSHING

Pressure Class	3M, 6M
Pipe Diameter	3/4

Origin: North America
Item# PHB36THC.75.50-U

Quantity	Price
Quantity	Price
1	$2.15771

$2.15771

Qty

In Stock

Product Detail

PHB36THC.75.375 A105 THREADED HEX BUSHING Pressure Class 3M, 6M Quantity Discounts A105 THREADED HEX BUSHING Pipe Diameter 3/4 Quantity Discounts Items

3/4'' X 3/8 3M/6M A105 THREADED HEX BUSHING

Pressure Class	3M, 6M
Pipe Diameter	3/4

Origin: North America
Item# PHB36THC.75.375-U

Quantity	Price
Quantity	Price
1	$2.15385

$2.15385

Qty

In Stock

Product Detail

ASTM A105	Covers forged carbon steel piping components for ambient- and higher-temperature service in pressure systems. Included are flanges, fittings, Valves, and similar parts ordered either to dimensions specified by the purchaser or to dimensional standards.
ASME B16.11	Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.

Per ASTM A105-A105M - 24
Grade A105	Tensile Strength	Yield Strength	Elongation in 4D	Reduction in Area	Hardness
Grade A105	Min ksi [MPa]	Min ksi [Mpa]	Min %	Min %	Max
	70 [485]	36 [250]	22	30	197

Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

Composition, %	0.35 max	0.60-1.05	0.035 max	0.040 max	0.10-0.35	0.40 max (1)	0.40 max (1)	0.30 max (1-2)	0.12 max (1-2)	0.08 max

	Sizes	1/8	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
3000 / 6000	C	0.4375	0.6250	0.6875	0.8750	1.0625	1.3750	1.7500	2.0000	2.5000	3.0000	3.7500	4.8750
	E	0.438	0.500	0.563	0.688	0.750	0.844	0.875	0.938	1.000	1.250	1.688	1.781
	J Min.		0.1875	0.1875	0.1875	0.2500	0.2500	0.3750	0.3750	0.3750	0.5000	0.4375	1.0000

A105 THREADED HEX BUSHING

Technical Data

Governing Standards

Governing StandardsA105 Threaded Hex Bushing

Mechanical Properties

Mechanical PropertiesA105 Threaded Hex Bushing

Chemical Properties

Chemical PropertiesA105 Threaded Hex Bushing

Dimensional Specifications

Dimensional SpecificationsA105 Threaded Hex Bushing
