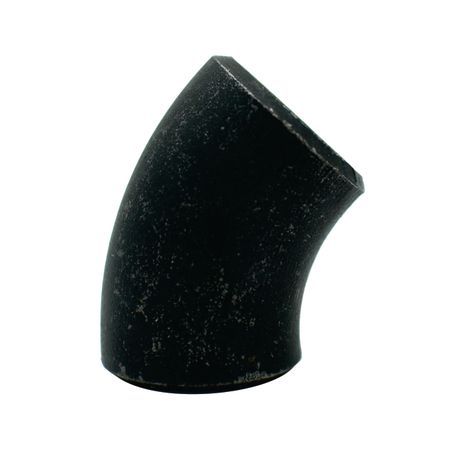

A234 BUTT WELD 45 DEGREE ELBOW

Products
Governing Standards
Chemical Properties
Mechanical Properties
Dimensional Specifications

Dimensional Specifications

Dimensional SpecificationsA234 Butt Weld 45 Degree Elbow

	Outside Diameter	Inside Diameter (I.D.)		Wall Thickness (T)		Center to End	Aprrox. Weight in Pounds
Pipe Size	(O.D.)	Schedule 40	Schedule 80	Schedule 40	Schedule 80	(A)	Schedule 40	Schedule 80
1/2	0.84	0.622	0.546	0.109	0.147	0.62	0.09	0.15
3/4	1.05	0.824	0.742	0.113	0.154	0.75	0.10	0.16
1	1.32	1.054	0.962	0.113	0.179	0.88	0.22	0.28
1 1/4	1.66	1.380	1.278	0.140	0.191	1.00	0.33	0.45
1 1/2	1.9	1.610	1.500	0.145	0.200	1.12	0.43	0.61
2	2.38	2.072	1.944	0.154	0.218	1.38	0.85	1.20
2 1/2	2.88	2.474	2.328	0.203	0.276	1.75	1.7	2.00
3	3.50	3.068	2.900	0.216	0.300	2	2.50	3.30
3 1/2	4.00	3.548	3.364	0.226	0.318	2.25	3.40	4.50
4	4.5	4.026	3.826	0.237	0.337	2.50	4.50	6.20
5	5.56	5.044	4.810	0.258	0.375	3.12	7.50	10.50
6	6.62	6.060	5.756	0.280	0.432	3.75	11.70	17.00
8	8.62	7.976	7.620	0.322	0.500	5	23.30	34.30
10	10.75	10.020	9.562	0.365	0.594	6.25	40.90	55.00
12	12.75	11.938	11.374	0.406	0.688	7.5	65.00	80.00
14	14.00	13.124	12.500	0.438	0.750	8.75	80.00	100.00
16	16.00	15.000	14.312	0.500	0.844	10	105.00	135.00
18	18.00	16.876	16.124	0.562	0.938	11.25	130.00	175.00
20	20.00	18.812	17.938	0.594	1.031	12.5	165.00	210
24	24.00	22.624	21.562	0.688	1.219	15	235.00	305

A234 BUTT WELD 45 DEGREE ELBOW

of 1

Sort By

View

Item # Pipe Diameter

P4540C.75 A234 BUTT WELD 45 DEGREE ELBOW Pipe Diameter 3/4 Quantity Discounts Items

3/4'' SCHEDULE 40 A234 BUTT WELD 45 DEGREE LONG RADIUS ELBOW

Pipe Diameter	3/4

Origin: Approved
Item# P4540C.75-X

Quantity	Price
Quantity	Price
1	$29.46154

$29.46154

Qty

3-5 Working Days

Product Detail

Origin: Non China/Non India
Item# P4540C.75-R

Quantity	Price
Quantity	Price
1	$5.50769

$5.50769

Qty

In Stock

Product Detail

P4580C.75 A234 BUTT WELD 45 DEGREE ELBOW Pipe Diameter 3/4 Quantity Discounts Items

3/4'' SCHEDULE 80 A234 BUTT WELD 45 DEGREE LONG RADIUS ELBOW

Pipe Diameter	3/4

Origin: Approved
Item# P4580C.75-X

Origin: Non China/Non India
Item# P4580C.75-R

Quantity	Price
Quantity	Price
1	$3.44615

$3.44615

Qty

In Stock

Product Detail

ASTM A234	Specification covers seamless and welded fitting made from wrought carbon steel and alloy steel. Fittings for use in pressure piping and pressure vessel fabrication.
ASME B16.11	Covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.
	Per ASTM A105-A105M-24

Per ASTM A234 WPB	Element	Carbon	Manganese	Phosphorus	Sulfur	Silicon	Copper	Nickel	Chromium	Molybdenum	Vanadium

	Composition, %	0.3	0.29-1.06	0.050	0.058	0.10 min	0.40	0.40	0.40	0.15 max	0.08

Per ASTM A234 WPB
Grade A234	Tensile Strength	Yield Strength
Grade A234	Min ksi [MPa]	Min ksi [Mpa]
	60 [415]	35 [240]

A234 BUTT WELD 45 DEGREE ELBOW
